This automatic motor torque dynamometer test bench is engineered for precision testing of 1Φ and 3Φ Brushless DC (BLDC) motors. It enables real-time data acquisition and analysis across multiple parameters—voltage, current, torque, speed, thermal rise, and more—supporting motor development, design validation, and production quality control.

Key Features

• Versatile Motor Compatibility:
• Supports 1Φ & 3Φ AC induction motors and 3Φ BLDC motors
• Customizable horsepower, torque range, and speed limits
• Comprehensive Testing Capabilities:

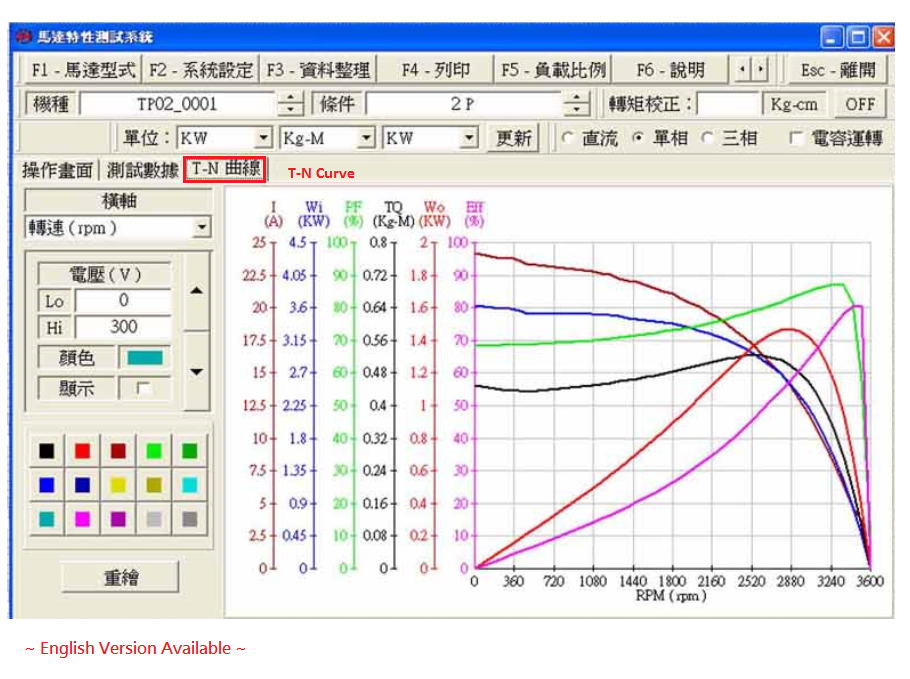

• T-N curve analysis under constant speed or torque control
• Electrical characteristics: voltage, current, input/output power, frequency, power factor

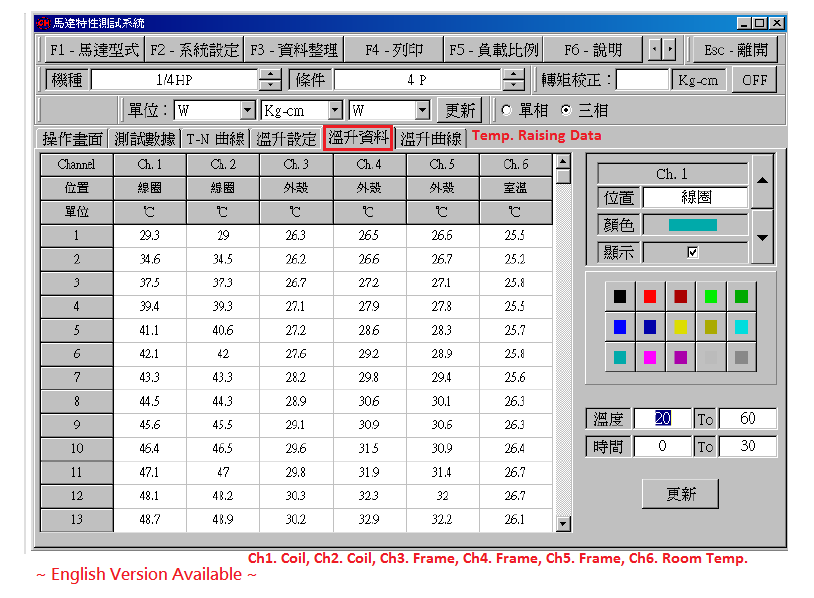

• Thermal temperature rise measurement and curve plotting
• Back-EMF and motor loss separation tests
• Advanced Measurement System:
• Integrated torque and speed sensors
• Industrial PC with dedicated operation software
• Real-time data display and recording
• Print-ready test result samples
• Modular Components:

• Power frequency inverter
• AC motor controller
• Power disk and control panel with RPM, torque, and power meters
• Temperature sensors and measurement interface

Test Modes

• No-load, load, and blocking tests
• Fixed-point and fixed-speed evaluations
• Simultaneous measurement of main line, auxiliary line, and capacitor for 1Φ motors
• Live data tabs for torque, temperature, and T-N curve visualization
